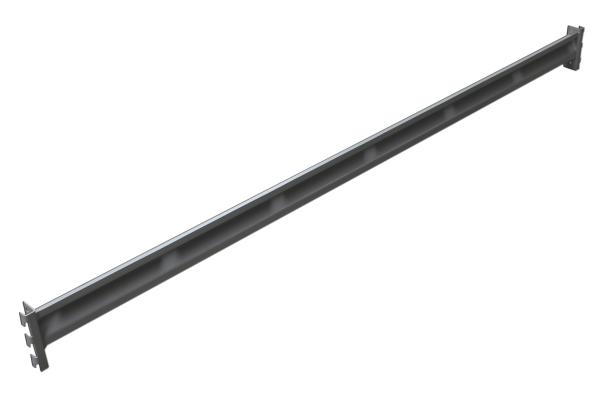

12 Ga Heavy Duty Z Formed Beam 60 Inch Long Capacity of 3,800 Lbs

Description

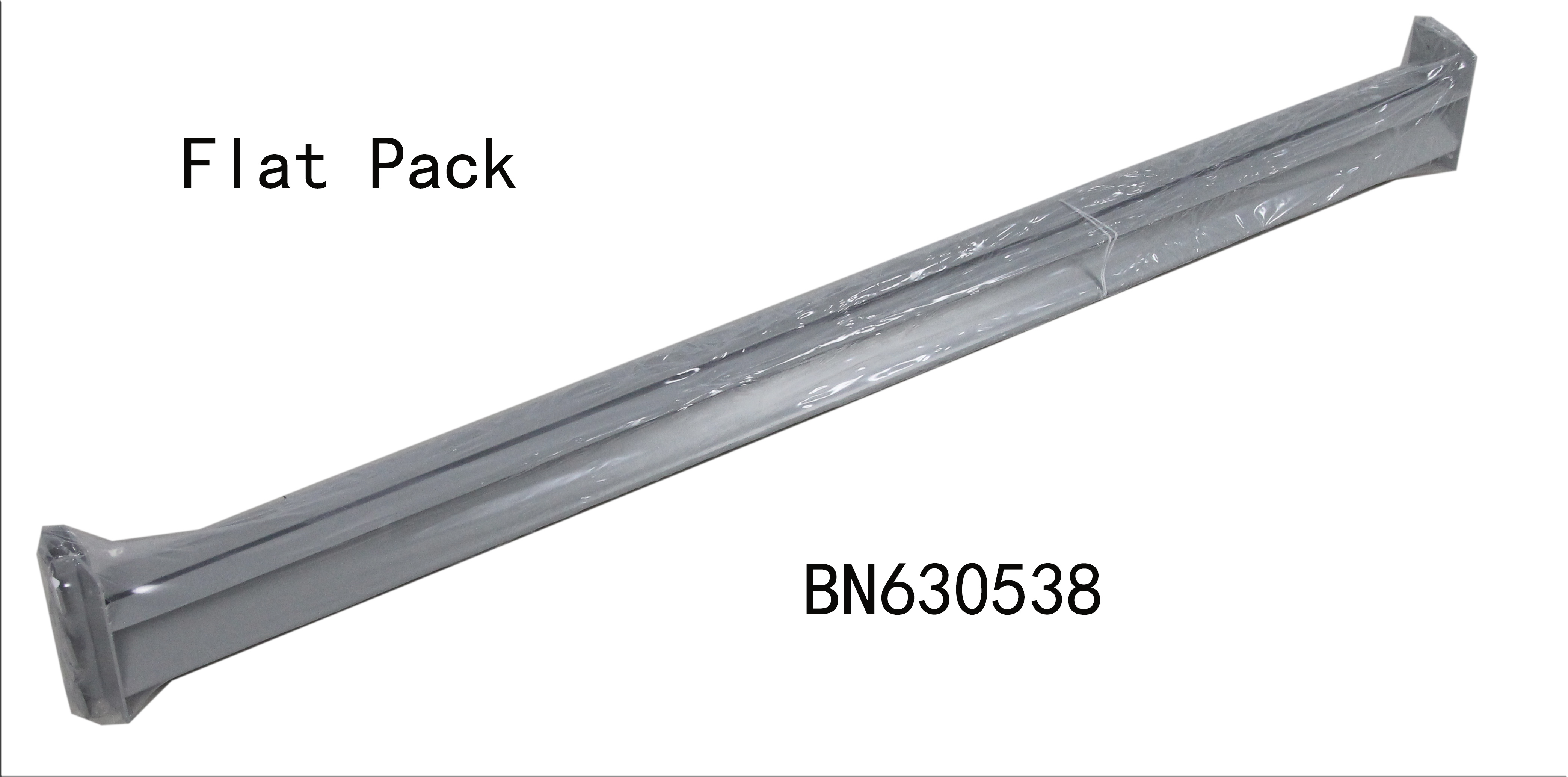

Heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments, packed by 2 pieces in shrink plastic. 3 hooks at each end of the beam allow positive connection with the upright. This tough and dependable starter unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 2 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.

Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf

Features

• Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
• Easy assembly with tools in the package
• Deck supports drop between 2 beams to eliminate twisting under load and prevent
• Z shape to place beam under extra load and provide protected surface for labeling
• Formed front edge for easy sliding on and off
• 5/8" step recess puts decking flush with top of beam
• Keystone slots for Beam snap into place and adjust on 2" increments
• 3 hooks at each side of the beam assure absolute rigidity
• Welded footplates for floor mounting
• Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency
• Includes 5 supports per shelf

Specification

Ningbo Brynick Enterprises Limited, established in 2006, is an innovative company who integrate the production and sales of warehouse equipment. After a dozen years of market experience and professional development, we are now a modern factory specializing in manufacturing and exporting different storage and safety equipment. We always aim to be a world-level supplier in industrial products and have built strong business relationships with large factories and industrial firms around the world, therefore enjoying a remarkable reputation both domestically and overseas.

Our products include a multitude of industrial equipment that are useful in many firms, including but not limited to supermarkets, warehouses, factories, power plants, research laboratories, retail stores, and offices etc. The first category we focus on is for storage. Whether you are a large industrial firm looking for sturdy racks/shelves for storage of heavy equipment or you are a biochemical lab in need of a service cart for transporting Erlenmeyer flasks, Brynick will satisfy your need with the variety of product selection and customization we offer. The second main category is for safety and/or security. Products such as folding wire container securely transports delicate products, while the mesh security partition offers the secure storage, protection and visibility of factory products, while the cylinder storage cabinet locker keeps flammable material or dangerous chemicals securely stored. Besides from the main categories, we also have related safety and storage accessories, available on www.brynick.com.

We have over 50 products with different specifications available and 100+ customizable accessories to select from. With 12 years of industry experience, our products are packaged to be space efficient and easy to assemble. Depending on the specification and requirements of the customers, we can manufacture parts with different materials and dimensions. Most of the instructions for assembly and product details can be found on http://brynick.com/download/cat1.pdf.
